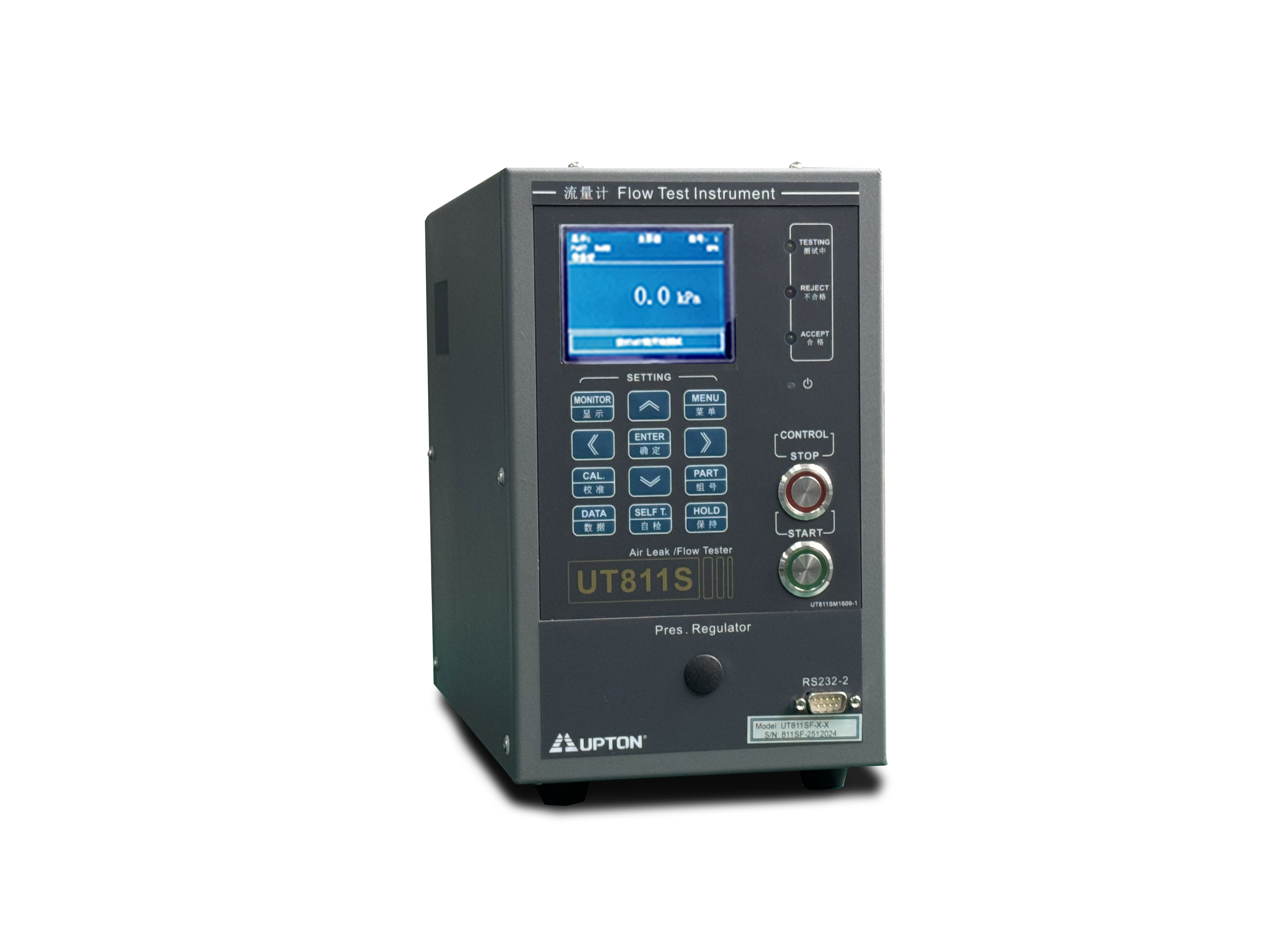

UT811SF高精度流量测试仪
    发布时间: 2019-05-22 17:22
  • 两个 RS232 接口,支持多种数据上报模式,支持串口启动、打印机、扫描枪Double RS232 port support multiple data upload modes, and serial port startup, printer, scanner

  • 通过扫描枪扫码启动,可通过串口把产品信息和测试数据绑定实时上传至上位机Starting with scanner gun, product information and test data can be uploaded to the upper computer through serial port in real time

  • 可实现中央服务器远程控制仪器的参数设定、数据存储、运行监控Implement parameter setting, data storage, operation monitoring of remote control instrument of central server

  • 启用了大通径的气路,实现了更快的充气速度Design of large pneumatic circuit for faster fill

  • 多种测试单位可选,并支持中/英文显示Multiple test units are available and support Chinese/English display

  • 支持四点五段报警,区分泄漏和微小泄漏Support 4-point 5-level alarm to distinguish between leaks and small leaks

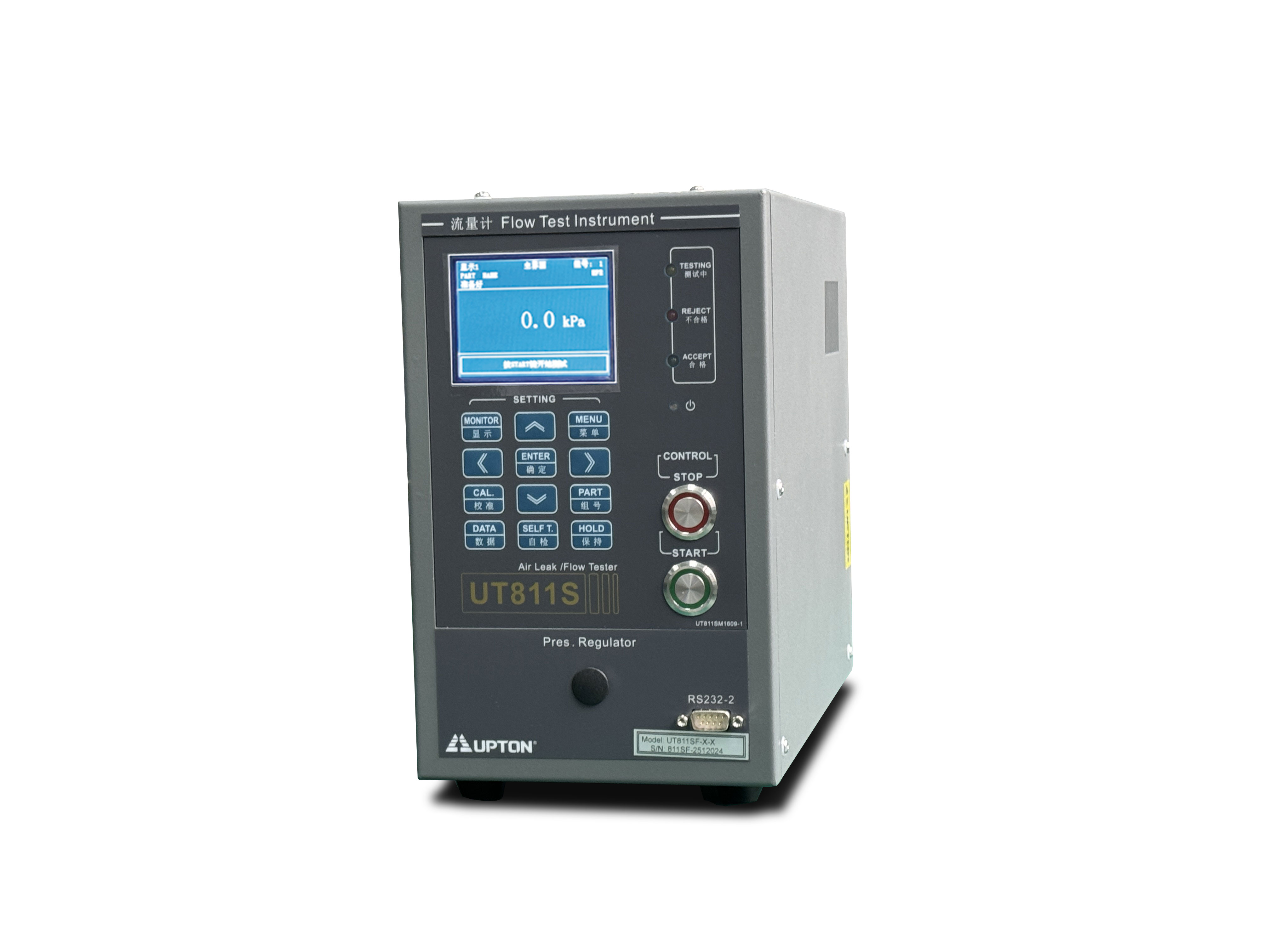

UT811SF高精度流量测试仪
UT811S Series

UT811SF

高精度流量测试仪

High Precision Flow Tester
UPTON 上腾上腾科技(广州)有限公司

[ 全球领先的测漏技术 ]

产品特点

  • 两个 RS232 接口,支持多种数据上报模式,支持串口启动、打印机、扫描枪Double RS232 port support multiple data upload modes, and serial port startup, printer, scanner

  • 通过扫描枪扫码启动,可通过串口把产品信息和测试数据绑定实时上传至上位机Starting with scanner gun, product information and test data can be uploaded to the upper computer through serial port in real time

  • 可实现中央服务器远程控制仪器的参数设定、数据存储、运行监控Implement parameter setting, data storage, operation monitoring of remote control instrument of central server

  • 启用了大通径的气路,实现了更快的充气速度Design of large pneumatic circuit for faster fill

  • 多种测试单位可选,并支持中/英文显示Multiple test units are available and support Chinese/English display

  • 支持四点五段报警,区分泄漏和微小泄漏Support 4-point 5-level alarm to distinguish between leaks and small leaks

选型指导 Selection Guidance  UT811S-①-②-③

① 测试形式 Test Type

助记符内容描述
流量型

② 压力范围 Pressure Range

助记符调压范围
-100 kPa(-98 ~ -3 kPa)
2020 kPa(0.5 ~ 20 kPa)*
* PR20 调压阀选购
100 kPa(3 ~ 100 kPa)

③ 流量范围 Flow Range

助记符分辨率
200.01 sccm
S11 sccm
10L10 sccm
量程比 100:1

配件与选购件

标准配件选购 Standard accessory selection

助记符内容描述
R41检测口 R1/4 螺纹
X414检测口 4mm 接头
X416检测口 6mm 接头
X418检测口 8mm 接头

选购品 Options

助记符内容描述
V-XXX标准罐(选型见样册)
C1-1414 芯外控线(1.5 米)
C3-1414 芯外控线(3 米)
C5外控线(5 米)
Su安装支架
RM外控盒(启停两位)
RMC外控盒(带 3 芯 1.5m 线)
PR055 kPa 微压调压阀(0.2~5 kPa)
PR2020 kPa 微压调压阀(0.5~20 kPa)
FS泄漏标准(漏孔)
EC外部校准组件
6100漏孔校准连接头
X41-44mm 接头帽
X41-66mm 接头帽
X41-88mm 接头帽
KHF06R1/4 转 6mm 锁死接头

技术指标 Parameters

检测形式 Test Type流量测试
显示 Display3.5″ 彩色 LCD 分辨率 320×240
容积测定 Volume Obtained不需要
通道数 Program Number64 组
测试压传感器 Test Pressure Sensor0.5% F.S.
时间设置 Cycle Time9999.9 sec
测试精度 Test Accuracy±(2%RD + 0.5%F.S.)
温度/湿度 Temperature/Humidity5~40℃,35~85%RH,无结露
气源 Air Supply洁净、干燥、稳定
电压及功耗 Power Supply100~240VAC,<50VA
重量 Weight约 10 KG
外观尺寸 DimensionW168mm × H275mm × D395mm

联系我们

上腾科技(广州)有限公司 Upton Technology (Guangzhou) Co., Ltd.

热线:400-008-6667网址:www.upton-tech.cn

以上内容根据《UT811SF.pdf》宣传单页整理
